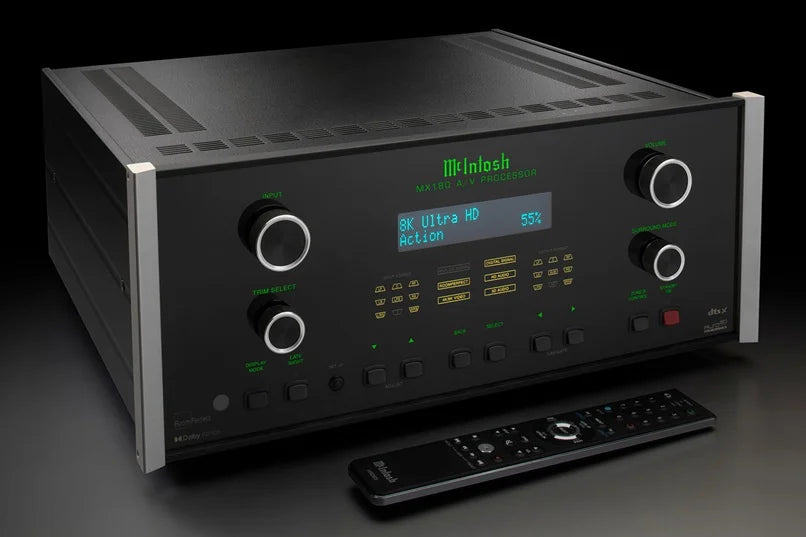

MX180 A/V Processor

The McIntosh MX180 is a state-of-the-art 15.1-channel A/V processor designed for discerning home theater enthusiasts. With support for 8K video formats, advanced room correction technology, and comprehensive connectivity, it delivers an outstanding audiovisual experience.

🎵 Sound quality & technology

Channel configuration : 15.1 channels, supports configurations like 9.1.6

Audio formats : Dolby Atmos®, DTS:X® Pro, Auro-3D®

Room correction : RoomPerfect™ technology for adaptation to room acoustics

Digital-to-analog converter : 16 discrete 32-bit DACs for each channel

Streaming features : Does not support built-in streaming services

⚙️ Technical data

Frequency response : ±0.5 dB from 20Hz to 20kHz

Total harmonic distortion : 0.005%

Output voltage :

Unbalanced: 2.5 Vrms

Balanced: 5.0 Vrms

BTU value : 75 BTU/h

📐 Design & Construction

Dimensions (W x H x D) : 44.45 cm x 19.4 cm x 41.9 cm

Weight : 13.6 kg (shipping weight: 24.5 kg)

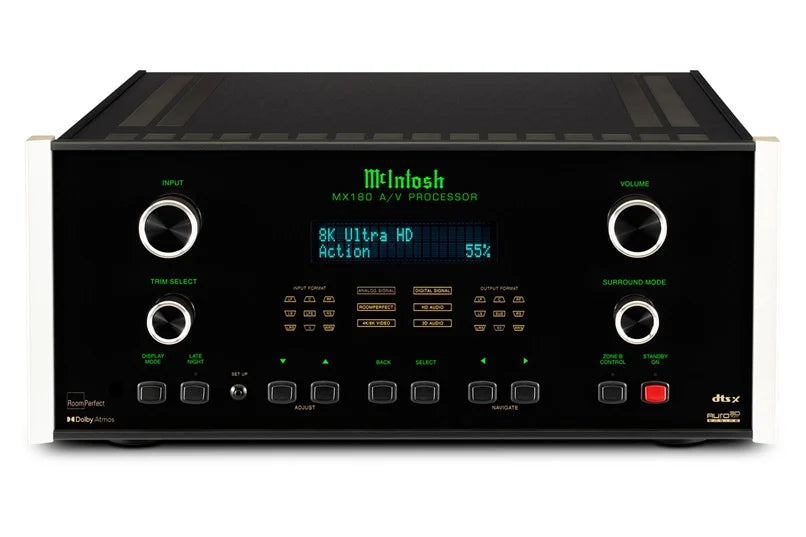

Cabinet : Black glass front with illuminated McIntosh logo, aluminum end caps and classic design

Operation : Front-panel rotary controls and supplied remote control

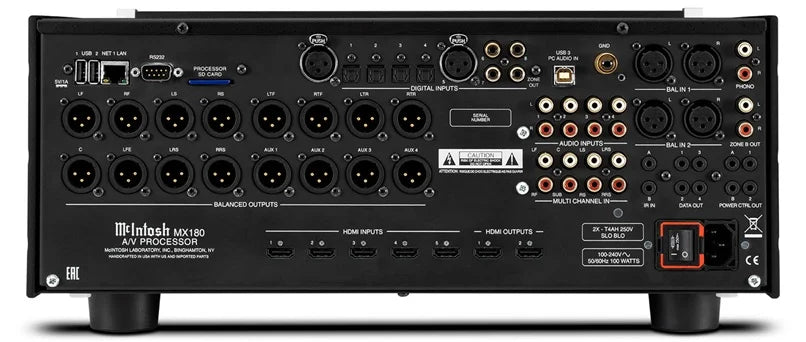

🔌 Connectivity & Integration

HDMI :

5 inputs, 2 outputs

Supports 8K/60Hz & 4K/120Hz, HDCP 2.3, Rec. 2020, 4:4:4 color space, Dynamic Lip-sync

HDR formats: HDR (static), Dynamic HDR, HDR10+, HLG, Dolby Vision (including Low Latency)

Advanced HDMI features: Quick Media Switching (QMS), Auto Low Latency Mode (ALLM), Quick Frame Transport (QFT), Variable Refresh Rate (VRR)

Digital inputs :

4 x optical

3 x coaxial

1 x USB Type B (up to 24-bit/192kHz)

1 x AES/EBU (XLR)

Analog inputs :

2 x balanced (XLR)

4 x unbalanced (RCA)

1 x Phono input (moving magnet)

1 x 7.1 multi-channel input (RCA)

Analog outputs :

16 x balanced (XLR) for speaker configurations up to 15.1

1 x unbalanced (RCA) for Zone B

Additional connections :

1 x USB Type A (only for firmware updates)

1 x Ethernet (for setup and control)

4 x 12V trigger outputs

RS232, IR input

Compatibility : Certified for Control4® and Crestron Home®

The McIntosh MX180 offers an outstanding combination of cutting-edge audio and video technology, comprehensive connectivity, and classic design. With support for current video and audio formats, high-quality room correction, and the ability to integrate with home automation systems, it's the ideal choice for discerning home theater enthusiasts.
