C12000 2-Channel Solid State and Vacuum Tube

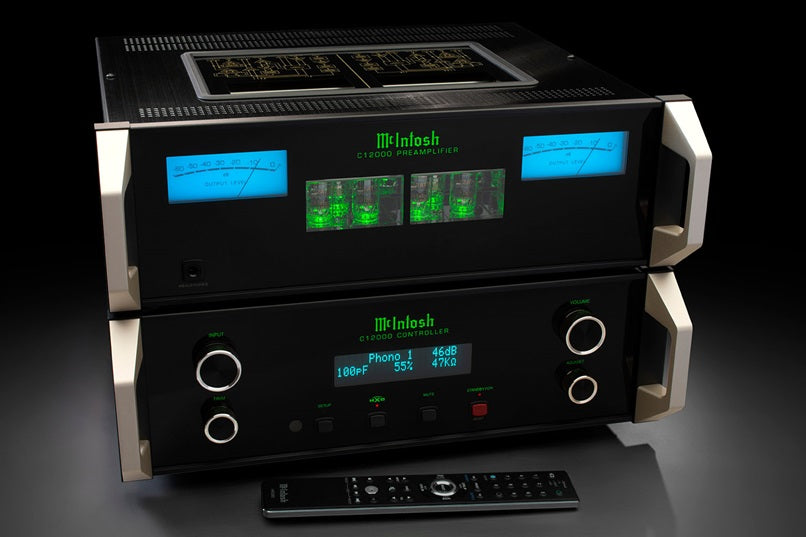

The McIntosh C12000 is a dual-chain high-end preamplifier that combines both tube and solid-state technology in a modular system. It consists of two separate enclosures: the C12000 Controller (C12000C) for control and power, and the C12000 Preamplifier Module (C12000ST) for audio processing. This separation minimizes interference and enables a true dual-mono configuration for optimal channel separation and sonic purity.

🔧 Technical data

Tube configuration :

High-level section: 6 tubes (2 × 12AT7, 4 × 12AX7A)

Phono section: 4 × 12AX7A

Analog inputs :

6 × balanced (XLR)

4 × unbalanced (RCA)

2 × Phono (configurable for MM or MC)

Outputs :

1 × balanced (XLR) tube output

1 × balanced (XLR) transistor output

1 × unbalanced (RCA) fixed

1 × unbalanced (RCA) programmable (tube or transistor)

Frequency response :

+0, -0.5 dB from 20 Hz to 20 kHz

+0, -3 dB from 15 Hz to 100 kHz

Total harmonic distortion (THD) :

High level: 0.005%

Phono: 0.05%

Signal-to-noise ratio :

High level: 107 dB

Phono MM: 83 dB

Phono MC: 79 dB

Input impedance :

50 kΩ (symmetrical)

25 kΩ (unbalanced)

Dimensions (W × H × D) :

Each module: 44.45cm × 15.24cm × 45.7cm

Weight :

C12000C: 12.3 kg

C12000ST: 11.3 kg

🎵 Sound quality & function

Hybrid Drive™ Technology : Combines tube and solid-state outputs that can be selected depending on the style of music or system configuration.

Phono inputs : Both phono inputs are flexibly configurable for MM or MC, with adjustable capacitance, resistance and gain (40–64 dB in 6 dB steps).

Headphone amplifier : High Drive Headphone Amplifier with HXD® technology and selectable impedance adjustment (16–600 Ω).

Home Theater Pass Through : Enables seamless integration into home theater systems.

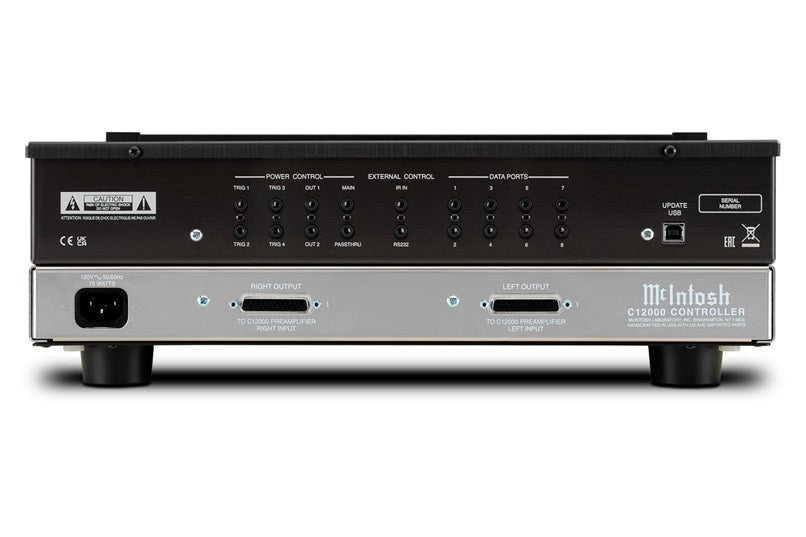

Control : 8 data ports, RS232, IR input, power control outputs and service port.

📐 Design & Operation

Chassis : Stainless steel with polished mirror finish and brushed black titanium stainless steel.

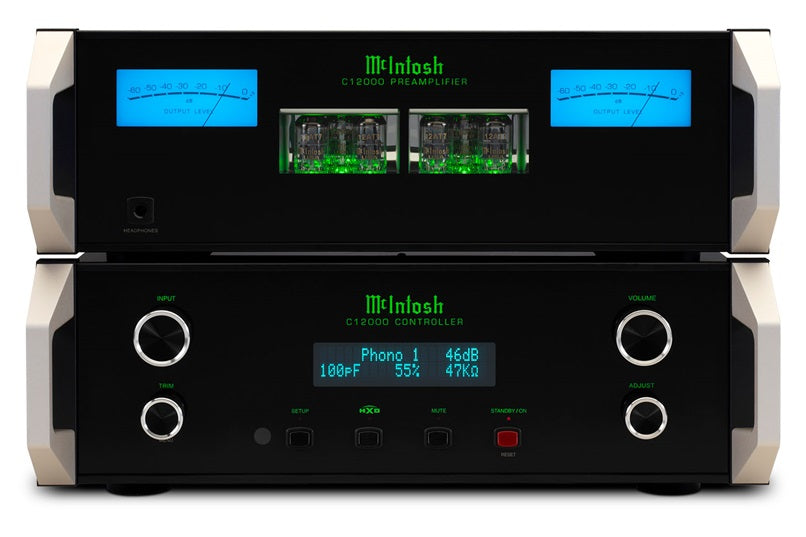

Front panel : Classic McIntosh design with black glass, illuminated logo and blue VU meters.

Operation : Remote control or control via the C12000C module.

The McIntosh C12000 is an outstanding preamplifier featuring a modular design, a combination of tube and solid-state technology, and extensive customization options. With its high-quality workmanship and classic design, it's an excellent choice for discerning music lovers.
