C49 2-Channel Solid State

The McIntosh C49 is a versatile preamplifier that supports both analog and digital audio sources. Featuring the modular DA1 digital module, it offers future-proof connectivity and outstanding sound quality.

🔧 Technical data

Analog inputs :

2 x balanced (XLR)

3 x unbalanced (RCA)

1 x Phono MM (Moving Magnet)

1 x Phono MC (moving coil)

Digital inputs :

2 x coaxial (RCA)

2 x optical (Toslink)

1 x USB-B

1 x MCT (for McIntosh SACD/CD transport)

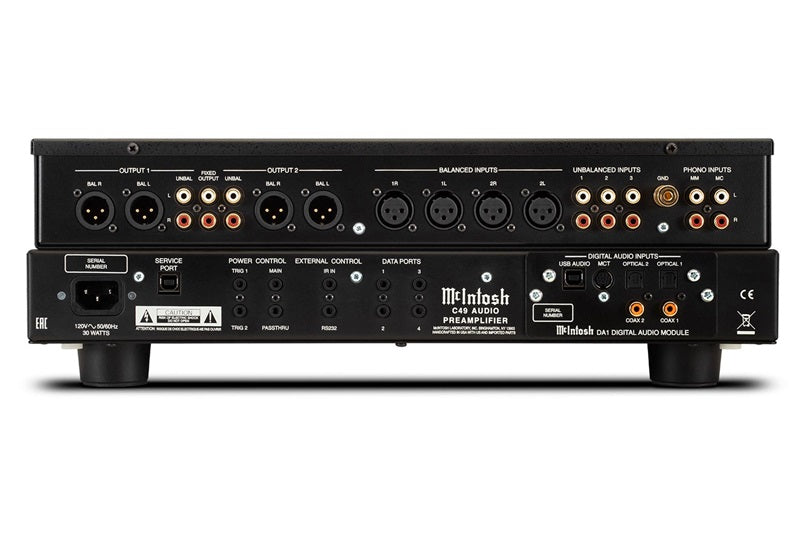

Outputs :

2 x balanced (XLR)

2 x unbalanced (RCA)

1 x unbalanced (RCA) subwoofer output

Frequency response :

+0, -0.5 dB from 20 Hz to 20 kHz

+0, -3 dB from 10 Hz to 100 kHz

Total harmonic distortion (THD) : 0.005%

Signal-to-noise ratio :

100 dB (high level)

90 dB (Phono MM)

80 dB (Phono MC)

Dimensions (W x H x D) : 44.5 cm x 15.2 cm x 45.7 cm

Weight : 11.3 kg

🎵 Sound quality & features

DA1 Digital Audio Module : Supports high-resolution audio formats up to 32 bit/384 kHz and DSD256.

Tone control : Bass and treble adjustable in 2 dB steps, can be deactivated if required.

Headphone amplifier : High drive headphone amplifier for various headphone impedances.

Home Theater Pass Through : Enables integration into home theater systems.

Power Control : Four connectors for automatic control of other McIntosh components.

Data Connectors : For controlling McIntosh source components via the remote control.

📐 Design & Operation

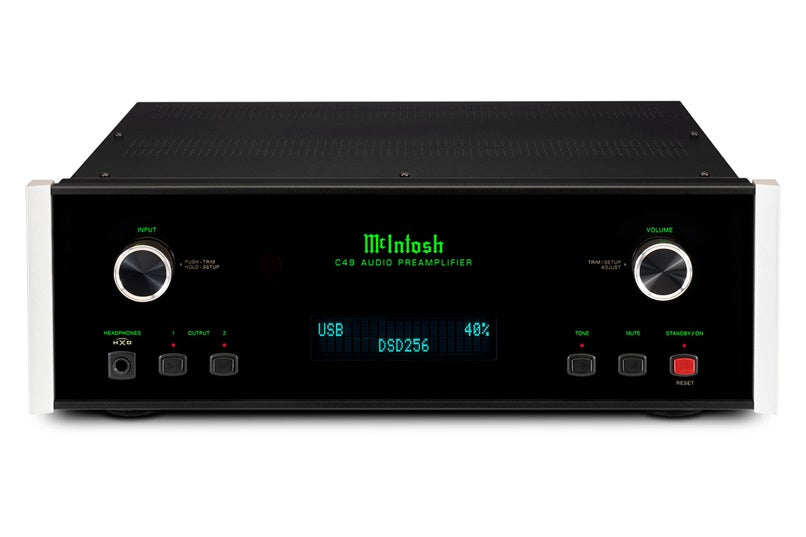

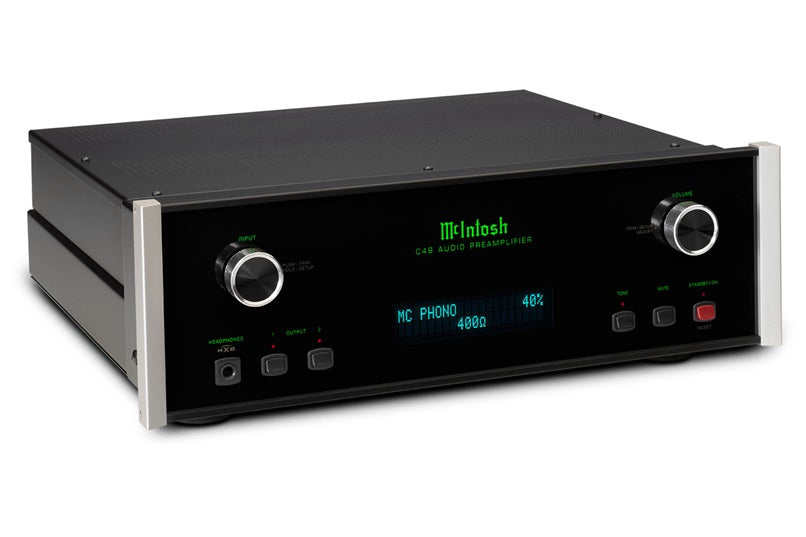

Front panel : Combination of black glass and aluminum with illuminated McIntosh logo.

Controls : Rotary controls and toggle switches for all functions.

Display : Vacuum fluorescent display to show input source, volume and other information.

The McIntosh C49 preamplifier offers a successful combination of classic design and modern technology. With its versatile connectivity options, high-quality workmanship, and sophisticated features, it's an excellent choice for discerning music lovers.
