C22 2-Channel Vacuum Tube Mk V

The McIntosh C22 Mk V is a high-quality tube preamplifier that combines classic design with modern audio technology. As the successor to the C70 70th Anniversary model, it offers a wide range of connectivity options and features for discerning music lovers.

🔧 Technical data

Tubes : 1 x 12AT7, 5 x 12AX7A

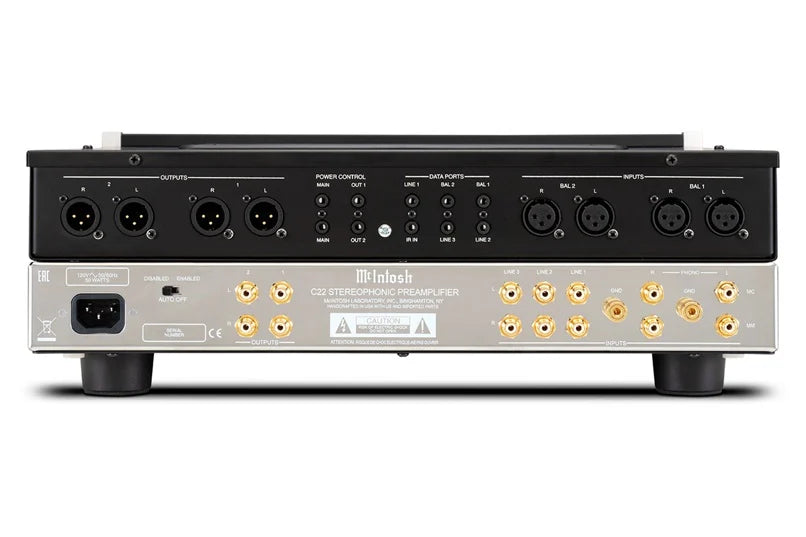

Entrances :

2 x balanced (XLR)

3 x unbalanced (RCA)

1 x Phono MM (Moving Magnet)

1 x Phono MC (moving coil)

Outputs :

2 x balanced (XLR)

2 x unbalanced (RCA)

Frequency response :

+0, -0.5 dB from 20 Hz to 20 kHz

+0, -3 dB from 15 Hz to 100 kHz

Total harmonic distortion (THD) : 0.08%

Signal-to-noise ratio :

95 dB (high level)

80 dB (Phono MM)

75 dB (Phono MC)

Input impedance :

44 kΩ (symmetrical)

22 kΩ (unbalanced)

Dimensions (W x H x D) : 31.2 cm x 19.4 cm x 41.3 cm

Weight : 8.2 kg

🎵 Sound quality & features

Sound control : Bass and treble adjustable in 2 dB steps, can be deactivated if required

Phono adjustment : Adjustable impedance and capacitance for MM and MC inputs

Headphone amplifier : High Drive Headphone Amplifier with HXD® technology for improved sound localization

Home Theater Pass Through : Enables integration into home theater systems

Power Control : Four connectors for automatic control of other McIntosh components

Data Connections : For controlling McIntosh source components via the remote control

📐 Design & Operation

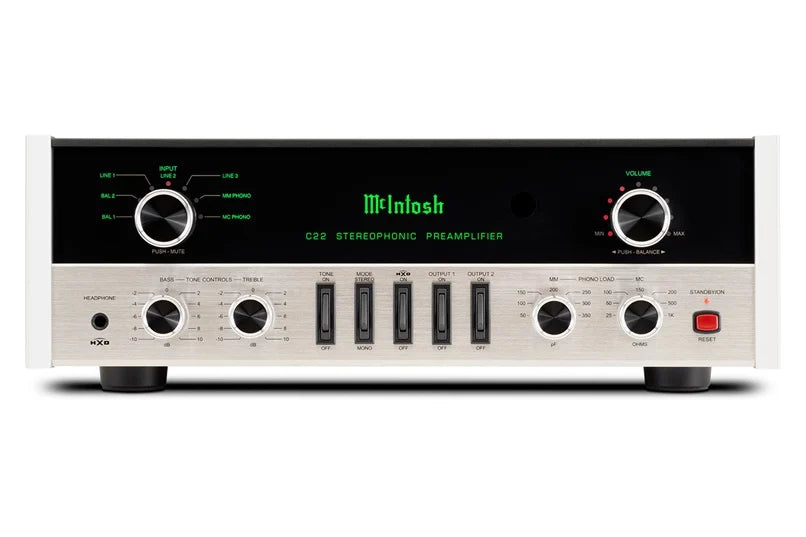

Front panel : combination of black glass and aluminum with illuminated McIntosh logo

Controls : Rotary controls and toggle switches for all functions

Tube protection : viewing window on the top for presentation of the tubes

The McIntosh C22 Mk V tube preamplifier offers a successful combination of classic design and modern technology. With its versatile connectivity options, high-quality workmanship, and sophisticated features, it's an excellent choice for discerning music lovers.
