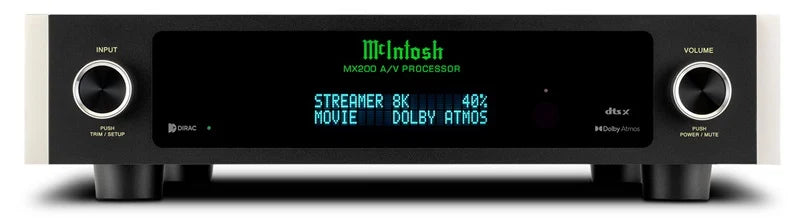

MX200 A/V Processor

The McIntosh MX200 is a powerful 11.2-channel A/V processor that combines cutting-edge audio and video technologies with legendary McIntosh sound quality. With support for 8K video formats, advanced room correction technology, and comprehensive connectivity, it delivers an outstanding home theater experience.

🎵 Sound quality & technology

Channel configuration : 11.2 channels, supports configurations like 7.2.4

Audio formats : Dolby Atmos®, DTS:X®

Room correction : Dirac Live® Room Correction Full Bandwidth (license included)

Digital-to-analog converters : Seven 32-bit DACs for audiophile sound quality

Tone controls : Bass and treble controls for fine-tuning the sound

⚙️ Technical data

Frequency response : ±0.5 dB from 20Hz to 20kHz

Total harmonic distortion (DSP bypass) : 0.05%

BTU value : 75 BTU/h

📐 Design & Construction

Dimensions (W x H x D) : 44.45 cm x 11.1 cm x 46.6 cm

Weight : 7.7 kg (shipping weight: 18 kg)

Cabinet : Black glass front with illuminated McIntosh logo, aluminum end caps and classic design

Rack mounting : 2U rack height with included rack mounting brackets

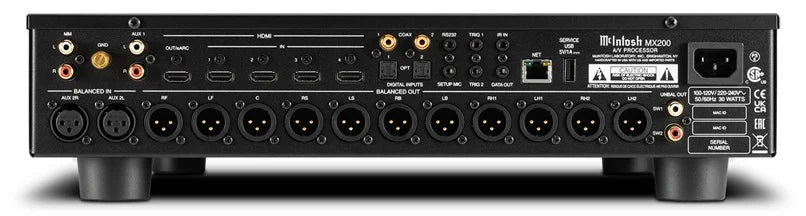

🔌 Connectivity & Integration

HDMI :

4 inputs, 1 output

Supports 8K/60Hz & 4K/120Hz, HDCP 2.3, Rec. 2020, 4:4:4 color space, Dolby Vision™, HDR10+, HLG, 3D Video Pass-Through

eARC/ARC for high-resolution audio formats

Digital inputs :

2 x coaxial

2 x optical

Analog inputs :

1 x balanced (XLR)

2 x unbalanced (RCA), including 1 x phono input (moving magnet)

Analog outputs :

11 x balanced (XLR) for speaker configurations

2 x unbalanced (RCA) for subwoofer

Additional connections :

1 x USB Type A (only for firmware updates)

1 x Ethernet (for setup and control)

2 x 12V trigger outputs

RS232, IR input

Compatibility : Certified for Control4® and Crestron Home®

The McIntosh MX200 offers an outstanding combination of cutting-edge audio and video technology, comprehensive connectivity, and classic design. With support for current video and audio formats, high-quality room correction, and the ability to integrate with home automation systems, it's the ideal choice for discerning home theater enthusiasts.
