MP100 2-Channel Solid State Phono

The McIntosh MP100 is a compact, high-quality phono preamplifier that supports both moving magnet (MM) and moving coil (MC) cartridges. With its combination of analog precision and digital outputs, it is ideal for vinyl lovers who want to enjoy their records in the highest quality and digitize them if necessary.

🔧 Technical data

Distortion (THD) : 0.005%

Frequency response : ±0.3 dB from 20 Hz to 20 kHz

Phono inputs :

1 × MM (47 kΩ; 50, 100, 150, 200, 300 or 400 pF)

1 × MC (25, 50, 100, 200, 400 or 1000 Ω; 470 pF)

Reinforcement :

MM: 40 dB

MC: 60 dB

Signal-to-noise ratio :

MM: 80 dB

MC: 78 dB

Maximum input levels :

MM: 80 mV

MC: 8 mV

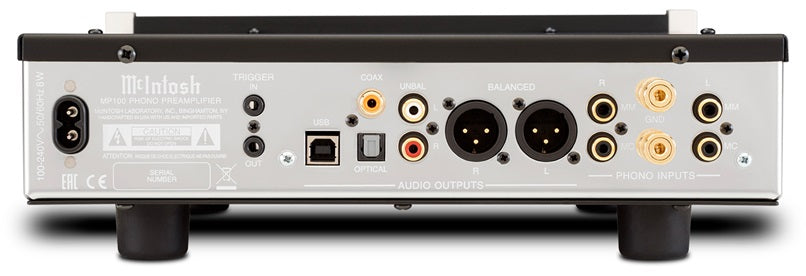

Outputs :

1 × balanced (XLR)

1 × unbalanced (RCA)

1 × USB (24-bit/96 kHz)

1 × optical (24 bit/96 kHz)

1 × coaxial (24 bit/96 kHz)

Output impedance :

symmetrical: 200 Ω

unbalanced: 100 Ω

Power consumption : 8 W

Dimensions (W × H × D) : 29.2 × 9.6 × 42.5 cm

Weight : 3.9 kg

🎵 Sound quality & function

Digital outputs : USB, optical and coaxial with 24 bit/96 kHz for easy digitization of vinyl recordings.

Adjustable load adjustment : Six settings for MM capacitance and MC resistance directly via the front panel.

Mono switch : For playing mono records.

Digital output level : Switchable between "Low" and "High" with clipping indicator.

Auto-off function : Automatic standby mode after 30 minutes of inactivity, can be deactivated.

Power Control : Inputs and outputs for synchronization with other McIntosh components.

📐 Design & Operation

Cabinet : Compact 3-inch design to match other McIntosh units such as the MHA150.

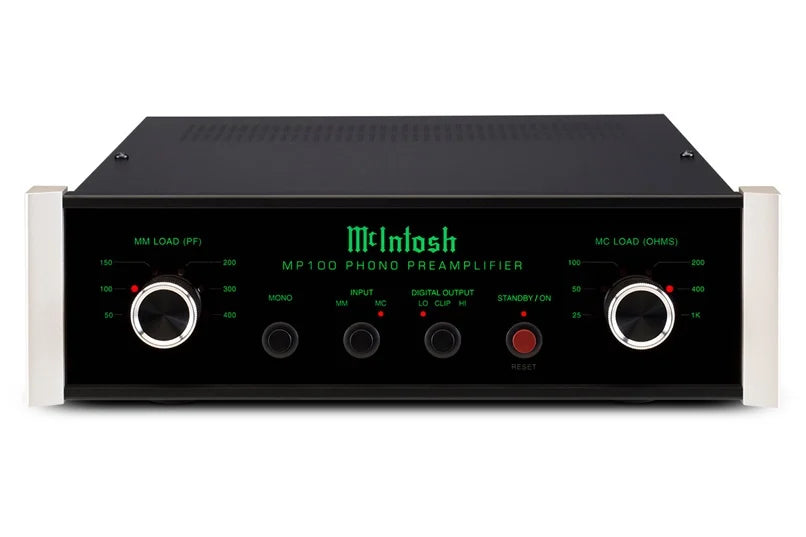

Front panel : Classic McIntosh design with black glass and green LED lighting.

Controls : Two rotary controls for load adjustment, buttons for input selection, mono and digital output level.

The McIntosh MP100 offers an outstanding combination of analog sound quality and digital features. With its flexible load matching, diverse outputs, and compact design, it's an excellent choice for vinyl enthusiasts who desire both traditional playback and modern digital capabilities.
